SMAC makes Moving Coil electric actuators. These products are the fastest actuators in the world. Cycle life is well beyond 100M. They have the ability to softly land on surfaces and then apply a programmed specific force. SMAC’s new LDL series of linear actuators has a list price of around $300 making them the first real electric actuator alternative to air cylinders. This price is based on SMAC’s contstent cost down program featuring pointed coils, in-house manufactured encoders, and laser cut parts. SMAC invented the Linear Rotary actuator 25 years ago. These are widely used in Electronic Pick and Place, Quality Thread Check, Bottle Capping, and beginning to find wide use in Automatic Screw Driving and SMART Drilling and Tapping. Interestingly a number of companies are making an effort to copy SMAC - but are not able to match technology or price. SMAC also has stepped up its efforts in inspection by launching the MLA series - a direct challenge to old tech LVDT devices.
Product filed under:
电机和驱动器电机和驱动器
SMAC Moving Coil Actuators introduced details for their LCA6. At 6mm wide, SMAC Moving Coil Actuators claims that the LCA6 is the thinnest linear moving coil in the world.
The LCA6 is cross roller guided, increasing accuracy. Flat coils are centred between cross rollers so deflection load is reduced and rigidity is increased. In addition, the LCA6 is small and stackable, conserving space.
LCA6 Specs:
- Linear Stroke: 10 mm
- Encoder resolution: 0.1-5 micron
- Coil resistance: 18.9 OHMS (24V)
- Moving mass: 38 g
- Total mass: 210 g (w/o cable)
- Peak Force: 3.5N (24V)
The LCA6 is great for electronic pick-and-place, biomedical dispensing, and QC measurement.
The LCA6 benefits include a compact and slim package, superior cross ruler guiding, ultra-low friction, ultra-smooth and rigid guiding, programmable position, force, velocity, Soft-Land capability, and feedback of position, force, and velocity.
SMAC’s built in sensor feedback system gives SMAC’s Moving Coil Actuators the unique mechatronic ability to “do work and verify its success at the same time.” This would allow the actuators to quality check key processes 100% in real time and feedback the results.
SMAC Moving Coil Actuators claim to be true “mechatronic solutions.” By that they mean their actuators have unique capabilities such as programmable and controllable position, velocity, and force, high accelerations, cycle life well over 100M, and a patent-pending “Soft-Land” capability. The Soft-Land capability is very useful when performing fragile part assembly, measurement, moving objects, etc.
SMAC’s low friction guide system makes their actuators extremely repeatable from move to move - within 1 msec. SMAC’s product development group originated such models as the Linear/Rotary actuator, the 2 independent axis Gripper, the world’s first direct drive Robotic Finger, and advanced magnetic circuit designs that have more than doubled forces in the same sized mechanical packages.

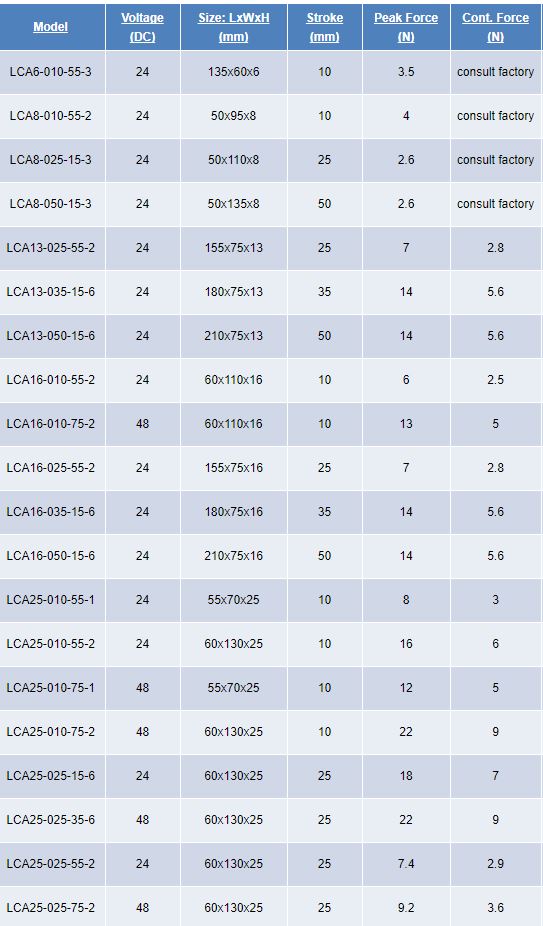

LCA Series Actuators
