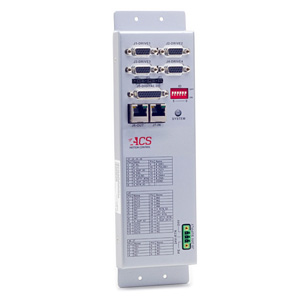

NPArm - 2 to 8 NanoPWM Motor Drives System with ±10V Current Commutation Commands
- The Ultimate Modular Drive for Demanding Positioning Applications
- Sub-nanometer standstill jitter
- Nanometer tracking error and optimal velocity smoothness
- 19“机架安装驱动模块完全集成
- 2, 4, 6, 8 drives
- Motor phase current: 3.3A/10A, 6.6A/20A, 10A/30A, 13.3A/40A (sine-amplitude cont./peak)
- 3.2kW Drive Power Supply. Input: 100-240Vac.
- Single and Dual Drive Supply Voltage:
- 96Vdc, 32A
- 48Vdc, 64A
- 96Vdc and 48Vdc, 32A
- Replacing Linear Drives While Gaining All the Advantages of PWM Drives
- ±10v current commutation commands
- DRBoostTMCurrent command Dynamic range control
- Current control dynamic range > 100db (100,000:1)
- Lower heat dissipation
- Better reliability
- Significantly smaller
- Simpler supply requirements
- Digitally controlled and easy setup
- STO (Safe Torque Off)
- Built-in motor phases shortening relays
