Why are you still manually programming your robot?

Robots were first introduced to manufacturing assembly lines in 1978. Since then, the hardware (mechanics and control systems) has improved significantly. Yet the way these robots are programmed has not changed very much. The vast majority of jobs are still programmed manually. However, new offline robot programming (OLP) tools are rapidly changing and being adopted.

If we look closely at manufacturing, oftentimes many different pieces of equipment and technology are used to get the job done. CNC machines, for example, were introduced to achieve high-precision machining and reduce the number of workers needed to do the physical work. Because the CNC was initially programmed manually on a controller, it was only as precise as the programmer who wrote the program.

Over time, the programming of CNCs was made more efficient by leveraging offline programming software to generate the g-code required to operate these machines. This led to increased accuracy, reduction of machine downtime, production of more complex parts, profitability in high-mix low-volume production runs, elimination of human error, and overall reduction in manufacturing costs.

Nowadays, manual CNC programming is exclusively reserved for programming very basic work in high-volume production runs. The use of powerful and easy-to-use offline software to program CNC machines has become the standard in the CNC world.

In the field of industrial robotics, there are three main ways to program robots:

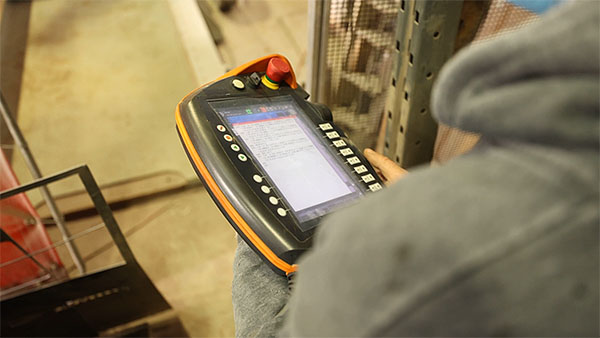

1. Teach pendant programming

This programming method involves using the teach pendant. A control box is used to program the motions of the robot. You move the robot arm into each desired position and then save the position as a point in the program. The output is a program in the brand-specific programming language of the robot arm.

Benefits:

• Traditional programming method
• Comes with the robot arm therefore no additional investment needed

Drawbacks:

• Subject to human error and inaccurate results
• Increases robot downtime as the robot is taken away from production during programming
• Requires robotics and programming expertise
• 为每个机器人的品牌,需要一个学习曲线each robot controller functions differently

2. Physical teaching

Certain robots are capable of being programmed by physically moving the robot arm and logging each position into the teach pendant. This is generally only an option for collaborative robots (robots designed to work safely alongside humans).

Benefits:

• Very intuitive and visual method
• Ideal for simple part programming
• Not as time-consuming and tedious as teach pendant programming

Drawbacks:

• Lack of precision
• Not ideal for all robotic applications
• Time-consuming for complex parts / programming
• Increases robot downtime as the robot is taken away from production during programming
• Not a viable programming method for most industrial robots

3. Offline programming software

The latest technology created to program industrial robots is offline programming (OLP) software. Similar to using CNC software to program a CNC machine, OLP software is the ideal programming method to program industrial robot arms.

How does it work? Offline programming software enables the user to program the robot on a computer, independently of the hardware, rather than taking the robot away from production. By importing the CAD model of the part, the software can automatically generate the path trajectories and create the program in a matter of minutes. OLP software also provides program optimization and validation through the virtual/simulation environment that matches the real-world robot cell to ensure the generated program is error- and collision-free.

Benefits:

• 强大和易于使用,快速程序generation
• Can be brand agnostic providing one software solution for all robot brands
• High level of accuracy can be achieved
• No programming or robotics expertise required
• Reduction of robot downtime and increase in production time

Drawbacks:

• Powerful offline programming software is an additional cost
• Requires the use of a computer

Today, industrial automation is the sweeping trend in the manufacturing world. It delivers the promise of producing more, with higher accuracy and in a fraction of the time. The supply chain disruption and severe labor shortage caused by the pandemic has further expedited the push towards automation.

Robots are key to automation. They are being used in a wide spectrum of applications, from simple pick-and-place to complex 3D manufacturing processes such as cutting, polishing and 3D printing. Furthermore, an increasing number of manufacturing facilities are producing low-volume batches of many different parts. These opposing needs cannot be fulfilled by manual teaching anymore. Only a good offline programming software can harness the full potential of robots in your facility.

Software has proven to be the game-changing component in the world of CNC programming, and the same is now happening in the world of industrial robots.

Are you using the best programming method for your robots? If you wish to talk with one of your experts regarding your robotic application to determine the best way to program your industrial robot arm,contact us.

Robotmaster®,一个人工发热机associates的品牌,是一个offline programming software for robots that helps manufacturers maximize productivity on production runs of all sizes. Robotmaster makes programming parts of any complexity quick and easy as a result of its integrated CAD/CAM functionality. This intuitive and powerful solution is designed with process experts in mind reducing the need for programmers and robotic expertise.
