Discover Opto Engineering® new high resolution telecentric lenses for sensors up to 4/3”

Providing excellent optical performance while maximizing incoming light and resolution is one of the biggest challenges in today’s machine vision applications.

Thanks to our extensive experience, we at Opto Engineering® have introduced the newTC4MHRPandTC4MHRP COREseries models featuring larger optical apertures and therefore higher resolution. These brand-new optics designed for 4/3" sensors offer low distortion, unmatched performance and homogeneous image quality. Thanks to it TC4MHRP lenses are the perfect choice to solve advanced metrology applications.

These new models are available in both classic and innovative ultra-compact CORE designs to ensure easy integration into any industrial environment.

NEW TC4MHRP MODELS AT A GLANCE

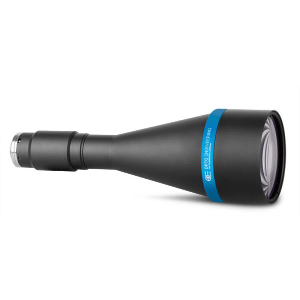

TC4MHR SERIES

High resolution telecentric lenses for sensors up to 4/3”

• Magnifications ranging from 0.059x to 4x

• C, F and J (M42x1 FD 12) mount options

• Simple and robust design
• Easy phase adjustment

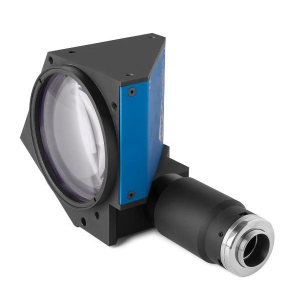

TC4MHR CORE SERIES

Compact telecentric lenses for sensors up to 4/3”

• Magnifications ranging from 0.143x to 0.366x

• C, F and J (M42x1 FD 12) mount options

• Extremely compact form factor
• Easy phase adjustment

Want to know more?

Visit our website at www.opto-e.com and contact our Area Managers to discover more!

ABOUT OPTO ENGINEERING^®CORE TECHNOLOGY

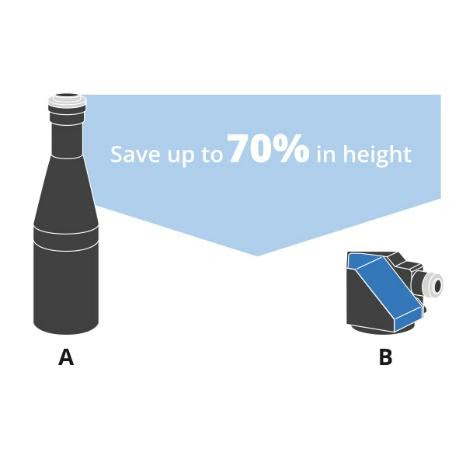

Opto Engineering® CORE telecentric lenses (B) are up to 70% smaller than other telecentric lenses available on the market (A). This unique design keeps the vision system extremely compact and efficient while reducing manufacturing, shipping and storage costs.

A) Classic telecentric lens
B) Compact TC CORE bi-telecentric lens
